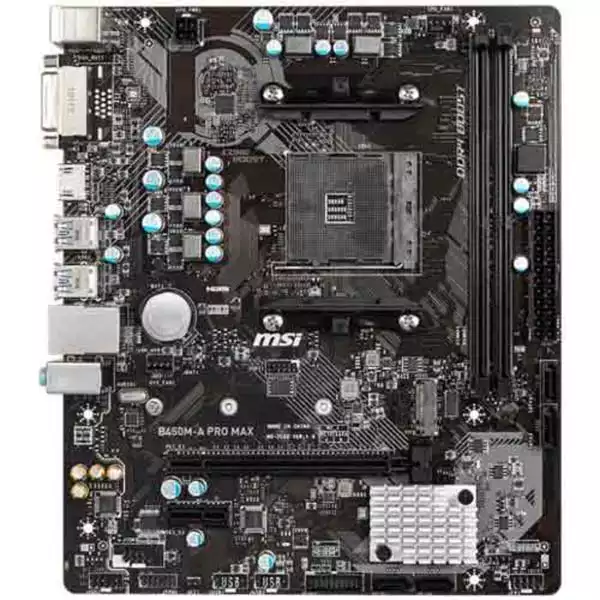

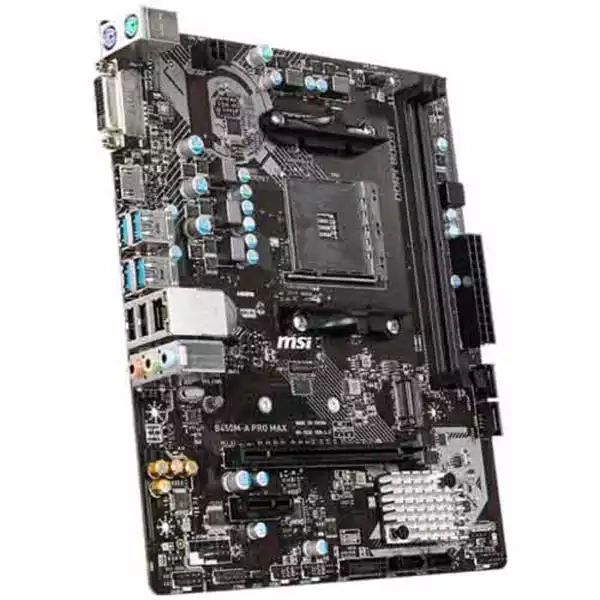

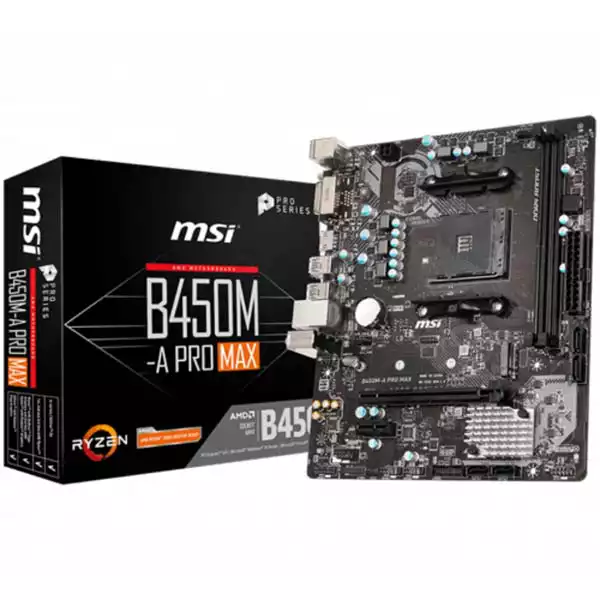

Matična ploča AM4 MSI B450M-A PRO MAX DVI/HDMI
Ident:
57954
EAN:
4719072667696
Dostupnost:
Nema na stanju
- Proizvod iz grupe: AMD matične ploče
- Proizvođač: MSI
- Dostupna količina: 0
| Tip procesora | AMD |
| Podnožje | AMD® AM4 |
| Čipset | AMD® B450 |
| Format ploče | Micro ATX |
| Podržani procesori | Prva, druga i treća generacija Ryzen procesora / Ryzen procesori sa integrisanom Vega grafikom / Athlon sa Vega grafikom i A-serija / Athlon X4 procesor za AM4 podnožje |
| Podržana memorija | DDR4 |
| Memorija | - 2 x DDR4 memorijska slota, podrška za do 32GB - Podrška za DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC) - Za AMD Ryzen Gen3 (R5/R7/R9) 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) - Za AMD Other CPU 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) - Dual channel memory architecture - Podržava ECC UDIMM memoriju (non-ECC mode) - Podrška za non-ECC UDIMM memory |
| Integrisana grafička karta | - 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1 - 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz |
| Slotovi za proširenje | - 1 x PCIe 3.0 x16 slot - Supports x16 speed - 1st, 2nd and 3rd Gen AMD Ryzen - Supports x8 speed - Ryzen with Radeon Vega Graphics - 2nd Gen AMD Ryzen with Radeon Graphics - A-series - Athlon X4 - Supports x4 speed - AMD Athlon with Radeon Vega Graphics - PCIe 2.0 x1 slot |
| Storage | AMD B450 Chipset - 4 x SATA 6Gb/s ports - Supports RAID 0, RAID1 and RAID 10 - 1x M.2 slot (Key M) - Supports PCIe 3.0 x4 and SATA 6Gb/s - 1st, 2nd and 3rd Gen AMD Ryzen - Ryzen with Radeon Vega Graphics - 2nd Gen AMD Ryzen with Radeon Graphics - Supports PCIe 3.0 x2 and SATA 6Gb/s - AMD® Athlon with Radeon Vega Graphics - A-series - Athlon X4 - Supports 2242/2280/22110 storage devices |
| Mrežna karta | - 1 x Realtek 8111H Gigabit LAN controller |
| Zvučna karta | Realtek ALC892 Codec - 7.1-Channel High Definition Audio |
| USB | AMD B450 Chipset - 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) - 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) |

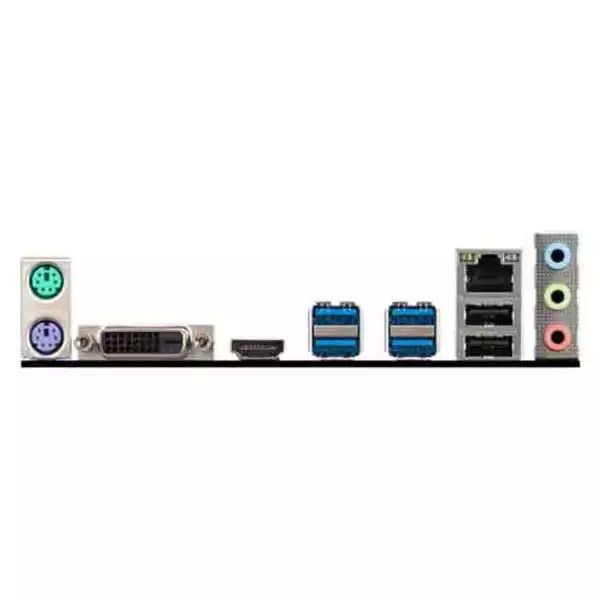

| Konektori na zadnjoj strani | - Mouse - DVI-D Port - USB 3.2 Gen1 - LAN Port - Keyboard - HDMI Port - USB 2.0 Ports - HD Audio Connectors |
| Interni konektori | - 1x 24-pin ATX main power connector - 1x 4-pin ATX 12V power connector - 4x SATA 6Gb/s connectors - 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) - 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) - 1x 4-pin CPU fan connector - 1x 4-pin system fan connector - 1x Front panel audio connector - 2x Front panel connectors - 1x TPM module connector - 1x Chassis Intrusion connector - 1x Serial port connector - 1x Clear CMOS jumper |
| Model | Matična ploča AM4 MSI B450M-A PRO MAX DVI/HDMI |
| Robna grupa | AMD matične ploče |
| Uvoznik | |
| Zemlja porekla | |
| Prava potrošača | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
