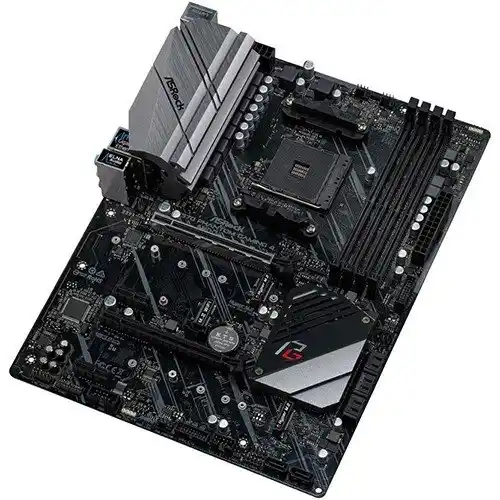

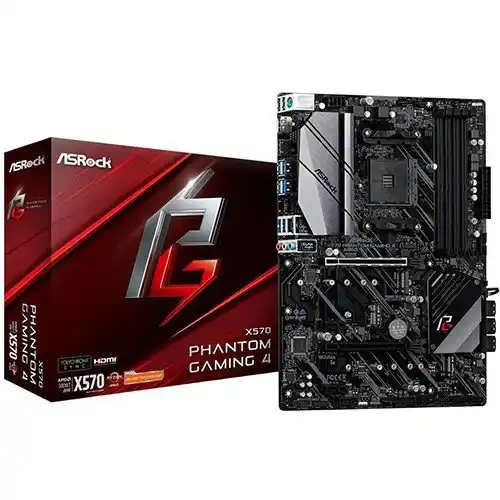

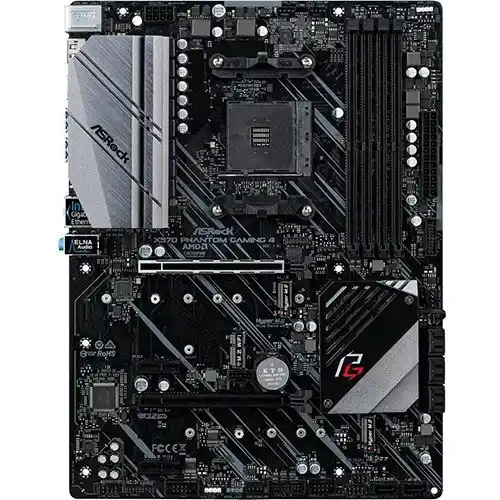

Matična ploča AM4 ASrock X570 Phantom Gaming 4 DP/HDMI Outlet
Ident:
81521
EAN:
52369999856
Dostupnost:
Na stanju
- Proizvod iz grupe: OUTLET RAČUNARSKE KOMPONENTE
- Proizvođač: AS Rock
- Dostupna količina: 2
Rok isporuke
2-5 radnih dana
2-5 radnih dana
Web cena
12.090,00 rsd.
Maloprodajna cena
*Za odloženo plaćanje:
12.000,00 rsd.| Opis | Refabrikovano, bez originalne ambalaže, testirano, ispravno. |
| Model | ASRock X570 Phantom Gaming 4 - AMD X570 Matična ploča AM4, PCIe Gen4, Dual M.2, HDMI, DP, USB 3.2 Gen 2, ATX |
| Procesorsko podnožje (Socket) | AMD Socket AM4 |
| Skup čipova (Chipset) | AMD X570 |
| Podrška za procesore | Supports AMD AM4 socket Ryzen™ 2000 and 3000 series processors Digi Power design 10 Power Phase design |
| Tip memorije (RAM) | DDR4 |
| Broj memorijskih slotova | 4x 288-Pin DDR4 |
| Podrška za memorije | Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots AMD Ryzen series CPUs (Matisse) support DDR4 4066+(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory* Max. capacity of system memory: 128GB** 15μ Gold Contact in DIMM Slots |
| Podrška za grafiku - portovi | Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB.** Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required) Supports HDR (High Dynamic Range) with HDMI 2.0 Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports Supports Microsoft® PlayReady |
| Multi-GPU podrška | AMD CrossFireX; Quad-GPU CFX |
| Slotovi za proširenja | AMD Ryzen series CPUs (Matisse) 2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)) AMD Ryzen series CPUs (Pinnacle Ridge) 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)) AMD Ryzen series CPUs (Picasso) 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE3)) 2 x PCI Express 4.0 x1 Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| M.2 portovi | 1x M.2 Socket 3 |
| Čuvanje podataka - portovi | 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso) 1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso) |
| U.2 portovi | nema |
| SATA Express portovi | nema |
| SATA portovi | 8x SATA 6Gb/s |
| LAN | Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel® I211AT Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
| Zvuk (Audio) | 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection ELNA Audio Caps PCB Isolate Shielding Individual PCB Layers for R/L Audio Channel |
| USB portovi | 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection) 6 x USB 3.2 Gen1 Ports (Supports ESD Protection) |

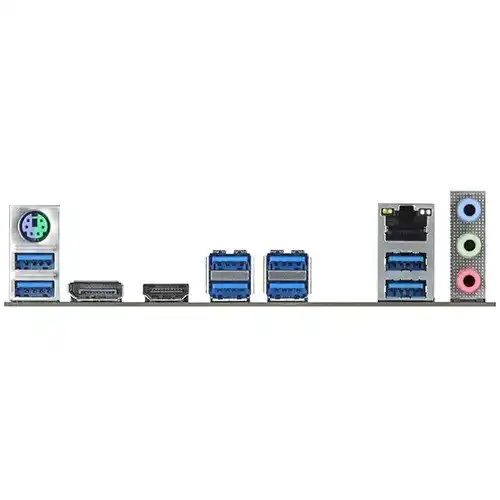

| Konektori na zadnjoj strani | 3 x Antenna Ports (on I/O Panel Shield) 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.2 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection) 6 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unutrašnji konektori | 1 x COM Port Header 1 x SPI TPM Header 1 x Power LED and Speaker Header 2 x RGB LED Headers 1 x Addressable LED Header 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x AMD LED Fan USB Header 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only) 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Posebne mogućnosti | ASRock USB 3.2 Gen2 ASRock USB 3.2 Gen2 Type-A Ports (10 Gb/s) ASRock Super Alloy XXL Aluminum Alloy Heatsink Premium 50A Power Choke Sapphire Black PCB High Density Glass Fabric PCB 2oz Copper PCB ASRock Steel Slot Gen4 ASRock Hyper M.2 (PCIe Gen4x4 & SATA3) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Operativni sistem | Windows® 10 |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP, VDDG, CPU Load-Line Calibration, CPU VDDCR_SOC Load-Line Calibration Voltage Multi-adjustment |
| Format | ATX |
| Dodatna oprema | Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables 3 x Screws for M.2 Sockets |
| Link ka proizvodjacu | https://www.asrock.com/mb/AMD/X570%20Phantom%20Gaming%204/index.asp#Overview |
| Model | Matična ploča AM4 ASrock X570 Phantom Gaming 4 DP/HDMI Outlet |
| Robna grupa | OUTLET |
| Uvoznik | |
| Zemlja porekla | |
| Prava potrošača | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
-
- Goran
- 2023-09-06
- Cena za outlet proizvod vam je kao da je potpuno nov proizvod. Za ovaj novac moze da se kupi potpuno nov proizvod.
-
- USPON DOO
- Poštovani, razlika između ovog outlet i potpuno novog proizvoda 3.500rsd. U skladu sa nedostatcima koje ima outlet proizvod se i formira cena.
