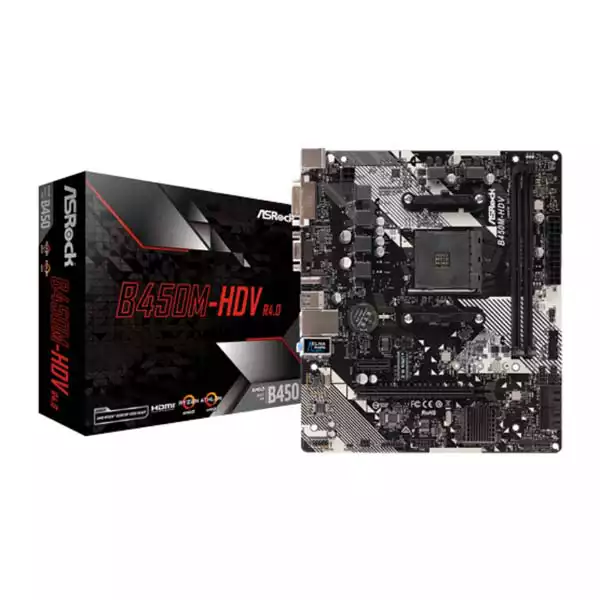

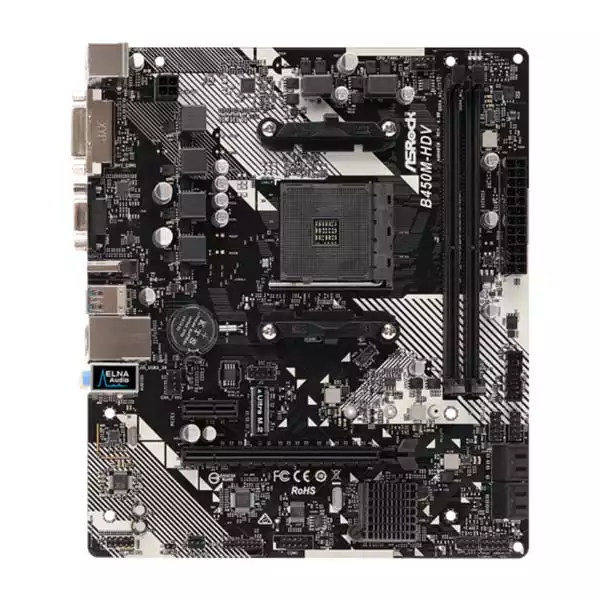

Matična ploča AM4 AS Rock B450M-HDV R4.0

Name: Matična ploča AM4 AS Rock B450M-HDV R4.0 - USPON DOO
Brand: AS Rock
SKU: 4717677337617
Price: 6990 RSD
Availability: InStock
Rating: 88 (20 reviews)

Ident: 59885

EAN: 4717677337617

Dostupnost: Na stanju

Proizvod iz grupe: AMD matične ploče
Proizvođač: AS Rock
Dostupna količina: 50

*uslovi kupovine

Rok isporuke
2-5 radnih dana

Web cena

6.990,00 rsd.

Maloprodajna cena

*Za odloženo plaćanje:

7.690,00 rsd.

Rata na 12 meseci: 672,88 rsd.

Količina

Štampaj

Tip procesora	AMD
Podnožje	AMD® AM4
Čipset	AMD® B450
Format ploče	Micro ATX
Podržani procesori	AMD Ryzen procesori prve, druge i treće generacije
Podržana memorija	DDR4
Memorija	- Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory - Max. capacity of system memory: 32GB - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots
Integrisana grafička karta	- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP 1.4 with DVI-D and HDMI Ports - Supports 4K Ultra HD (UHD) playback with HDMI Port
Slotovi za proširenje	AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) AMD Ryzen series CPUs (Picasso, Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode) - 1 x PCI Express 2.0 x1 Slot
Storage	- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)
Mrežna karta	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Zvučna karta	- 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection - ELNA Audio Caps
USB	USB 2.0 USB 3.1 Zadnji panel: - 4 x USB 3.1 Gen1 - 2 x USB 2.0 Header-i na matičnoj ploči (za priključke na kućištu): - 1 x USB 3.1 Gen1 - 2 x USB 2.0

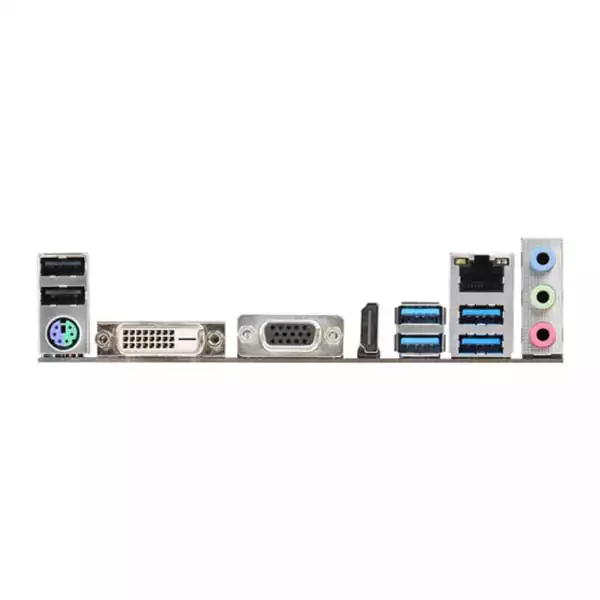

Konektori na zadnjoj strani	- 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Interni konektori	- 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)** - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

Model	Matična ploča AM4 AS Rock B450M-HDV R4.0
Robna grupa	AMD matične ploče
Uvoznik
Zemlja porekla
Prava potrošača	Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
