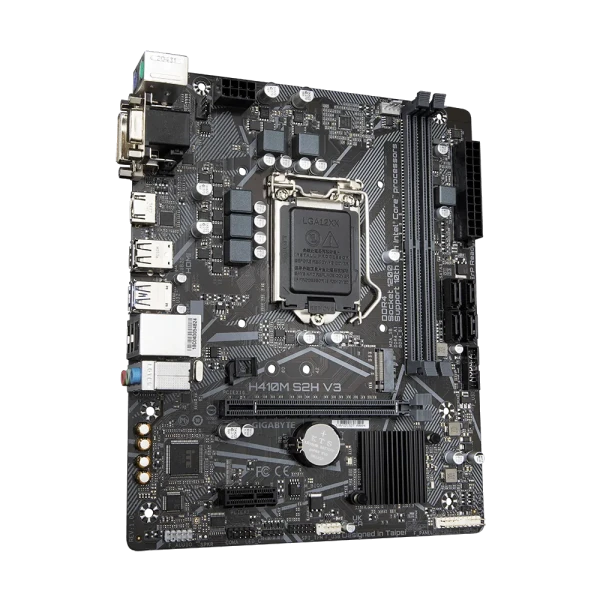

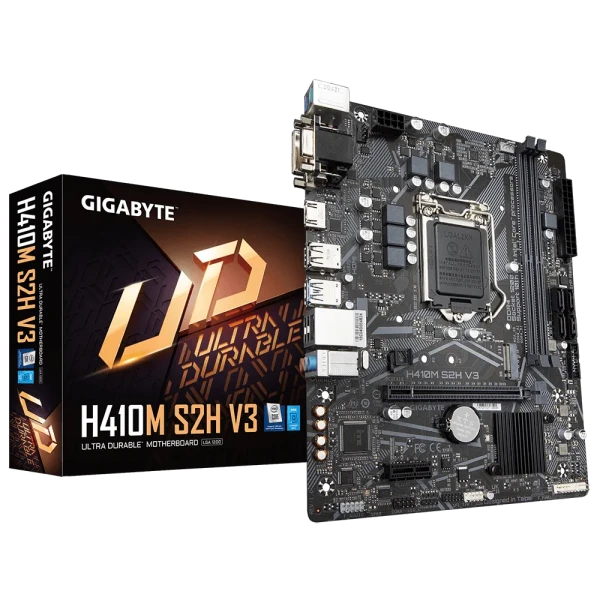

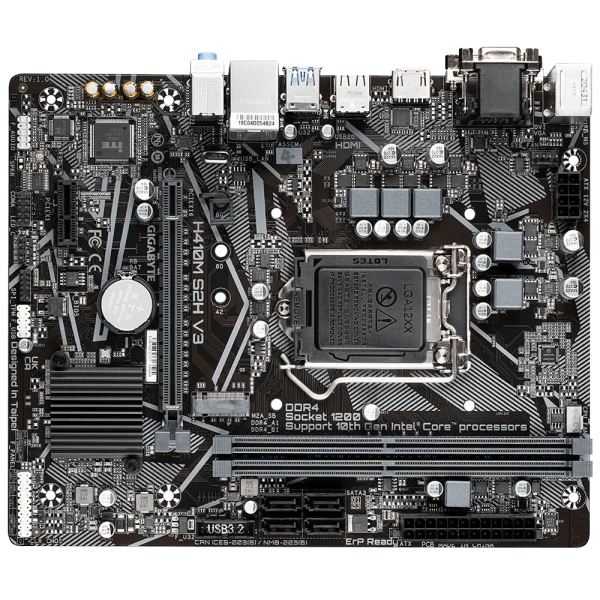

Matična ploča 1200 Gigabyte H410M S2H V3 HDMI/DVI/VGA/M.2
Ident:
68771
EAN:
4719331823535
Dostupnost:
Nema na stanju
- Proizvod iz grupe: Intel matične ploče
- Proizvođač: Gigabyte
- Dostupna količina: 0
| Tip procesora | Intel |
| Podnožje | Intel® 1200 |
| Čipset | Intel® H410 |
| Podržani procesori | Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU |
| Podržana memorija | DDR4 |
| Memorija | Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Integrisana grafička karta | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. |
| Slotovi za proširenje | 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot |
| Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
| Mrežna karta | Gigabit Ethernet Chip (1 Gbps/100 Mbps) |
| Zvučna karta | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| USB | 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |

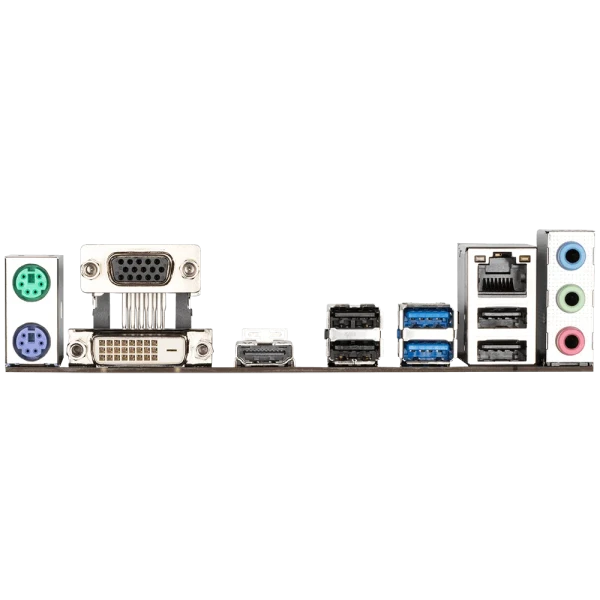

| Konektori na zadnjoj strani | 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Interni konektori | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Model | Matična ploča 1200 Gigabyte H410M S2H V3 HDMI/DVI/VGA/M.2 |
| Robna grupa | Intel matične ploče |
| Uvoznik | |
| Zemlja porekla | |
| Prava potrošača | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
